Run the checks in the order a technician would — two minutes without tools tells you which half of the system failed.
An empty ice bin sneaks up on you: the ice maker hums along for years, then one afternoon there’s nothing for your drink. The good news: Whirlpool ice makers fail in predictable ways, and you can narrow the cause down in minutes without tools. Below is the exact order we check things in on service calls across San Diego County, followed by the correct reset procedure for each Whirlpool model family.
This guide applies to Whirlpool French-door, side-by-side, and bottom-freezer refrigerators — and to most Kenmore refrigerators too, since Kenmore models with numbers starting in 106 were built by Whirlpool and use the same ice maker designs.
Pick where to start
BThe 7 causesMost common first — from a bumped arm to a dead module
CReset the right wayThe correct method for each model family
DWhen a reset won’t helpWhat a technician tests next
The two-minute checks (do these before anything else)
- Is it actually on? Wire shut-off arm should be down; on/off switch to ON; and on display models, make sure the “Ice Maker Off” icon isn’t lit. A bag of ice shoved into the bin can push the arm up and shut production off.
- Is the bin seated? Pull the ice bin out and push it back until it locks. A bin sitting a half-inch proud can stop the system.
- Dispense a glass of water. A weak trickle points upstream — filter, inlet valve, or house pressure — not the ice maker itself.
- Anything change recently? A new water filter, a move, or a power outage each explain a temporary stall. After installation or a long shutdown, allow 24 hours for the first ice.
7 reasons a Whirlpool ice maker stops working, most common first
1. It’s switched off or paused
Unglamorous, but it tops the list. The shut-off arm gets bumped, or the ice maker was turned off before a vacation and never turned back on. Confirm the on state before chasing anything else.
2. Frozen fill tube
The small tube that delivers water into the mold can plug solid with ice. It happens when household pressure is low or when a worn inlet valve seeps water after the fill finishes — the dribble freezes layer by layer until nothing passes. Thaw it with a hair dryer on low or a warm, damp cloth — but unless the pressure or valve is corrected, it will freeze again within days.
3. Overdue or badly seated water filter
Whirlpool recommends a new filter every 6 months, and San Diego’s water makes that deadline real: most of our supply is hard, mineral-heavy water imported from the Colorado River, and it loads filters faster than the calendar suggests. A quick test — install the bypass plug (or a fresh filter) and see if ice production recovers.
4. Weak water pressure or a failing inlet valve
Whirlpool specifies 30–120 psi at the refrigerator connection. Reverse-osmosis systems often deliver less, and hard-water scale — a constant in San Diego homes — can jam the valve partly open (causing the fill-tube icing above) or partly closed (thin cubes, hollow cubes, or none at all). Swapping the valve means working on the pressurized supply line — the point where most homeowners hand it off.
5. Freezer running too warm
Ice makers are temperature-triggered: the mold thermostat won’t call for a harvest until the ice is properly frozen. Set the freezer to 0°F; production slows noticeably above about 5°F. If the whole freezer is warm — soft ice cream, frost on the back wall — the ice maker is a symptom, not the problem, and you’re looking at a refrigerator repair issue like a defrost fault or a tired condenser.
6. Ice-level sensing gone wrong (optics or arm)
Side-by-side models with in-door ice use an infrared beam across the bin — an emitter board on one side, a receiver on the other. Frost, an ice chip, or a stuck flapper door blocking that beam convinces the fridge the bin is full, and production quietly stops. On arm-style units, the same failure looks like a shut-off arm frozen in the up position. There’s a built-in optics self-test — it’s covered in the reset section below.

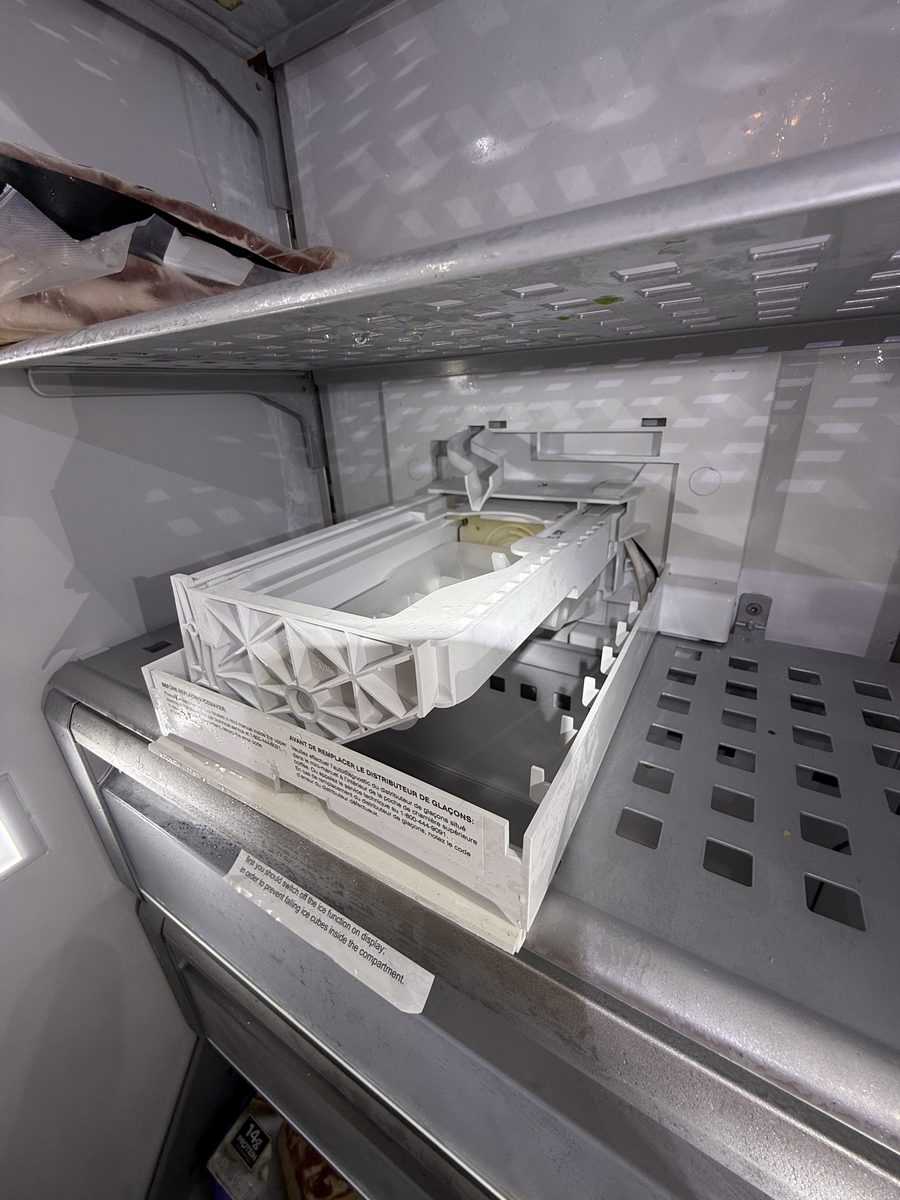

7. The ice maker itself has failed
Ejector rake frozen mid-rotation, a burned-out mold heater, a dead motor, or a failed thermostat inside the control module. Whirlpool’s modular design lets a technician confirm this in minutes using the test points behind the module’s front cover — jumping the T and H contacts forces a harvest cycle — a live-voltage test, not a DIY step. When the module is the culprit, the practical fix is usually a complete ice maker assembly.
Makes ice fine, just won’t dispense?
Nine times out of ten the ice has fused into a solid clump — the aftermath of a power outage or a door left ajar — and the auger can’t turn through it. Dump the bin, break up the clumps, and reseat it. If fresh, loose ice still won’t come out, the auger motor or the chute flap needs attention, and on dispenser-display models a flashing status code can point the same direction.
Checked everything and the bin is still empty?
Same-day Whirlpool and Kenmore ice maker service across San Diego County — call before noon. $80 service call, credited toward the repair.
Reset your Whirlpool ice maker the right way
First, a reality check: a reset restarts the control cycle — it cannot thaw a fill tube, unclog a filter, or revive a dead valve. Do the checks above first, then use the method that matches your model.

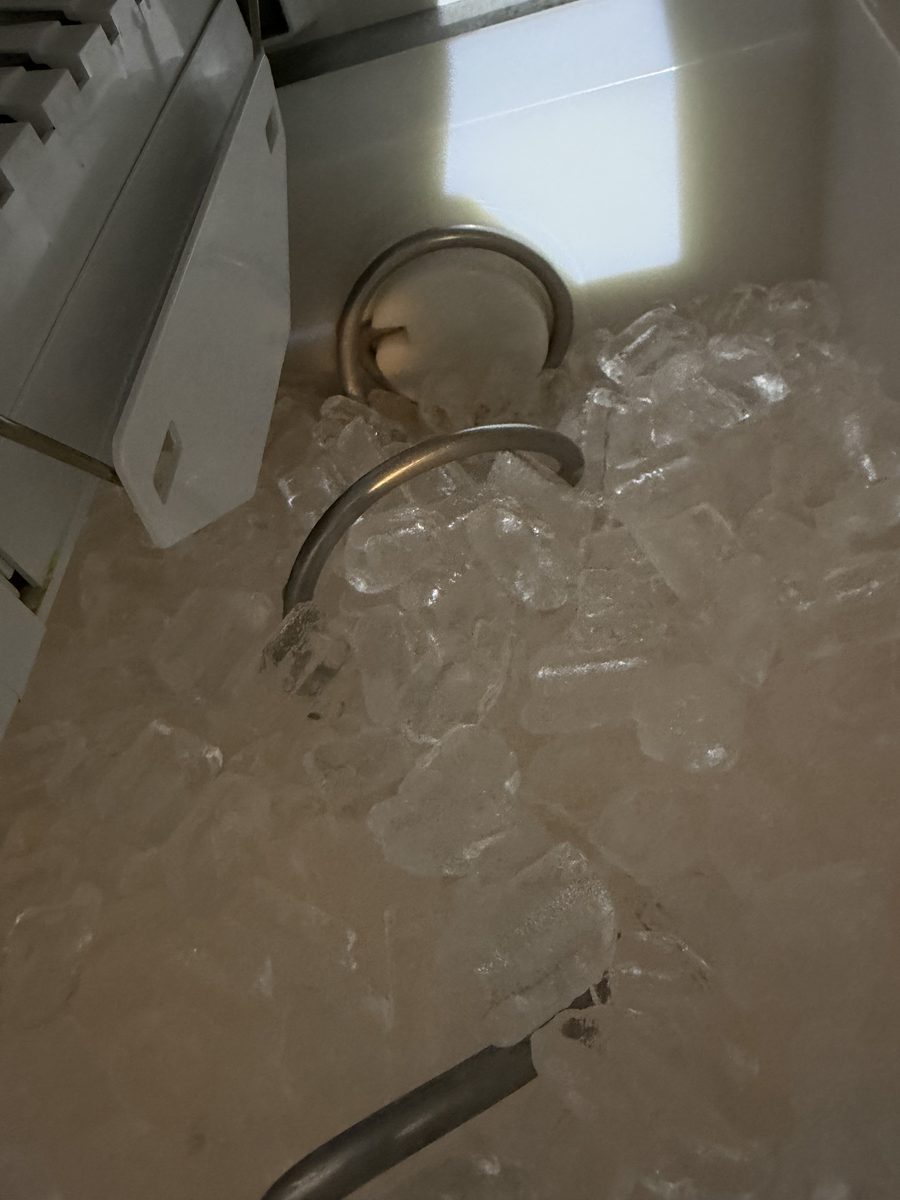

Models with a wire shut-off arm
Gently lower the arm to the ON position and wait for the next cycle. Never force it — an arm that resists moving usually means the mechanism is jammed with ice, which is a harvest-side problem, not a switch problem.

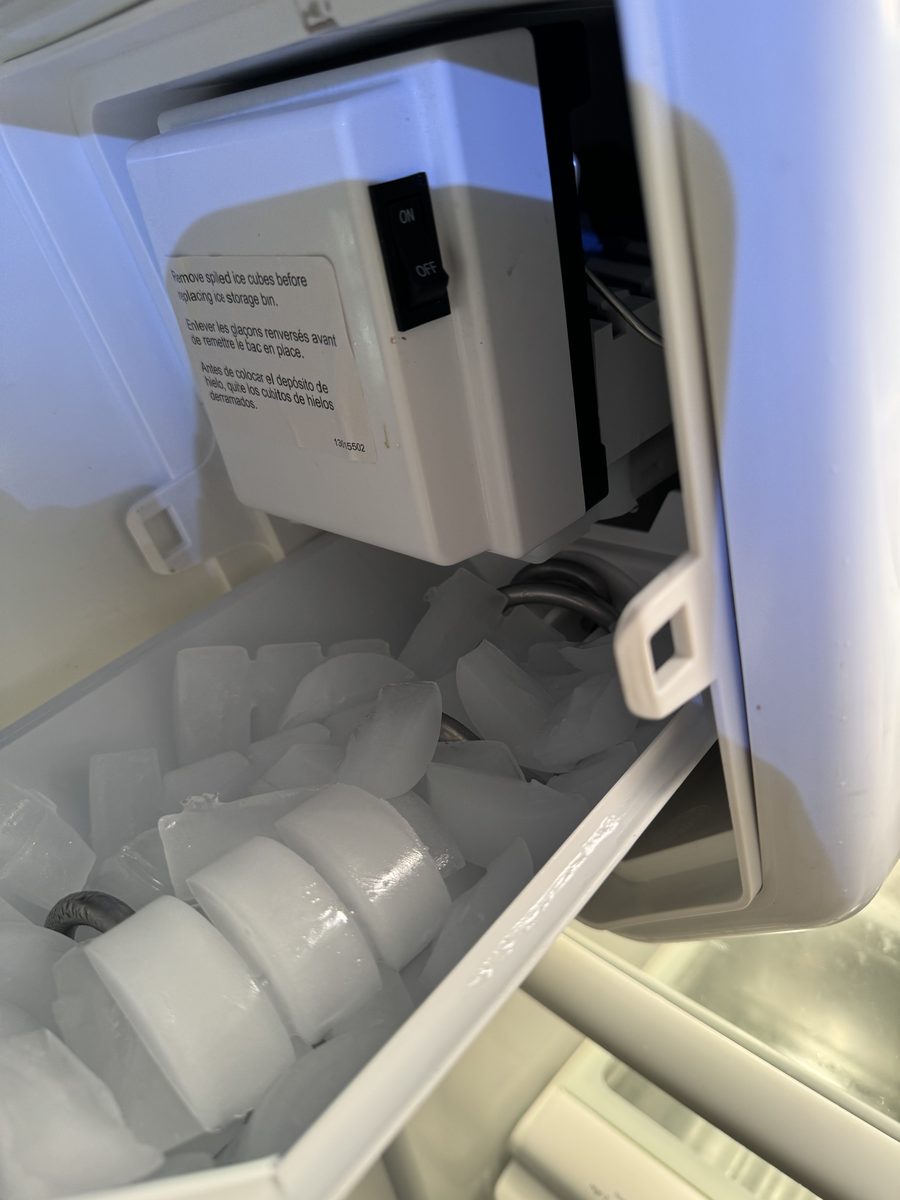

Models with an on/off switch or display control
Flip the switch OFF, wait about 10 seconds, and flip it back ON. On touchscreen models, turn the ice maker off from the controls menu, wait the same beat, and re-enable it.

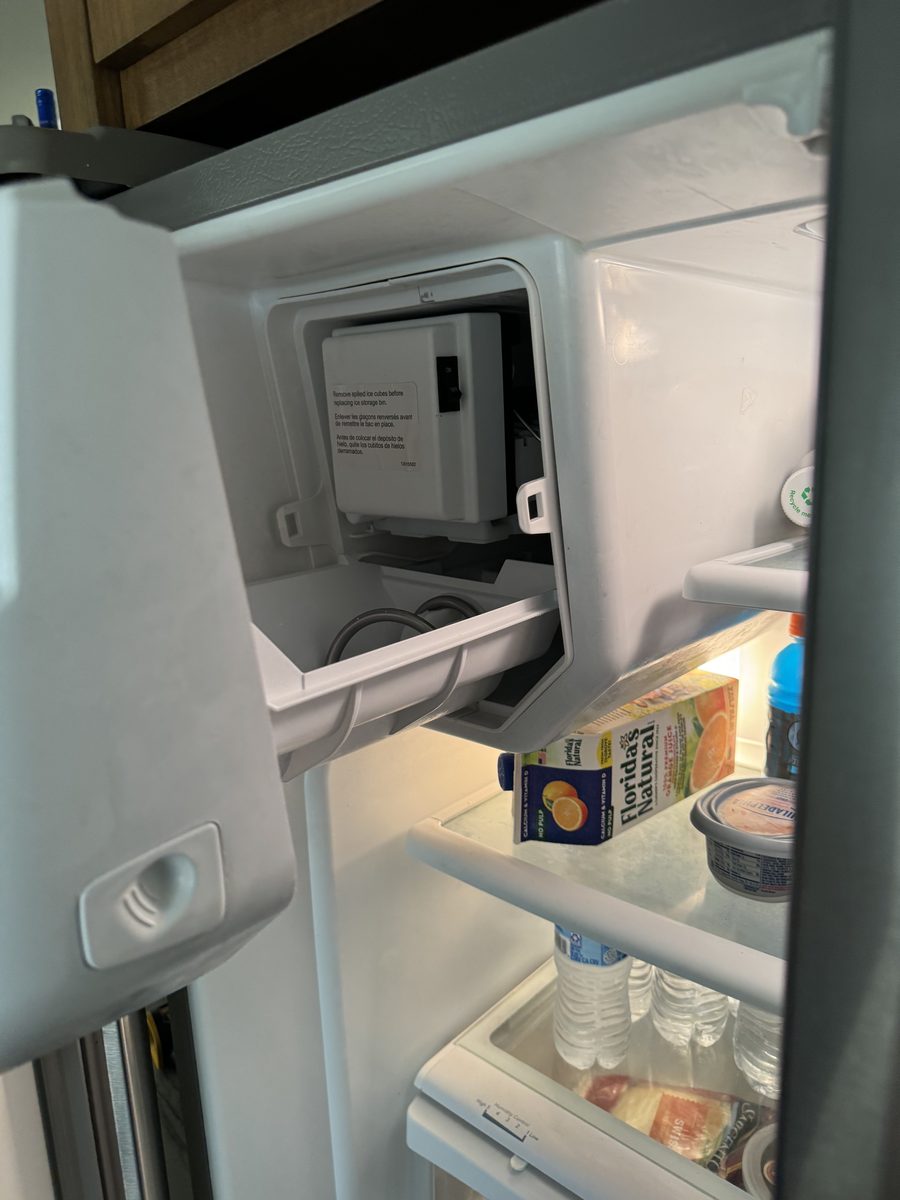

French-door models with a reset button
Remove the ice bin and look along the side of the ice maker compartment for a small reset button. Press and hold it for roughly 5 seconds — many models confirm with a chime — then replace the bin and give it a full cycle.
Side-by-side in-door ice: run the optics self-test
Open the freezer door and watch the small status LED on the receiver board (right side of the bin opening). Two blinks followed by a one-second pause, repeating, is the door-open standby signal. Now press the flapper door on the emitter side closed: the LED should switch to steady on. Steady means the beam is good — your problem is elsewhere. Still blinking means blocked or failed optics — clear frost from both lenses and re-test before condemning the boards.
The full power cycle
If none of the above applies, unplug the refrigerator (or switch off its breaker) for 5 minutes, then restore power. Expect the first harvest within about 90 minutes to 3 hours, full production in 24 hours — and discard the first couple of batches after any long shutdown.
When a reset won’t help — and what a tech does next
If you’ve confirmed the unit is on, water flows, the freezer is at 0°F, and a proper reset changed nothing after 24 hours, the fault is mechanical or electrical: a seeping inlet valve, failed optics boards, a dead module, or a wiring problem behind the freezer wall. Repeating the reset won’t change the outcome — it just delays the fix.
Here our licensed and insured technicians take over. We arrive with the common Whirlpool parts on the truck — inlet valves, optics kits, complete ice maker assemblies — run the live tests (forced harvest, valve output, optics diagnostics), and in most cases restore ice the same visit. The $80 service call is credited toward the repair when you proceed, and the work is backed by a 90-day warranty on parts and labor. See our ice maker repair page for the full scope, or our Whirlpool service page if other symptoms are stacking up on the same fridge.
Frequently Asked Questions
How do I reset a Whirlpool ice maker?
It depends on the model. On units with a wire shut-off arm, lower the arm to the ON position. On models with a switch, turn it off, wait about 10 seconds, and turn it back on. Many French-door models have a reset button inside the ice maker compartment — remove the ice bin and hold the button for about 5 seconds. If nothing changes, unplug the refrigerator for 5 minutes and restore power.
Why is my Whirlpool ice maker not making ice but the water dispenser works?
Water and ice run through separate outlets of the inlet valve, so a working dispenser doesn’t clear the supply side. The usual suspects are a frozen fill tube, a failing dual inlet valve, ice-level optics that think the bin is full, or a freezer running warmer than about 5°F. Check the fill tube and the freezer temperature first.
How long does it take for a Whirlpool ice maker to make ice after a reset?
When everything is working, the first harvest lands within about 90 minutes to 3 hours, and production reaches normal within 24 hours. If there’s no new ice after 24 hours, the reset didn’t address the real cause and the unit needs a hands-on diagnosis.
Why is my Whirlpool ice maker full of ice but not dispensing?
Most often the ice has fused into clumps that jam the auger — typical after a power outage or a door left ajar. Empty the bin, break up or discard the clumped ice, and reseat the bin. If fresh, loose ice still won’t dispense, the auger motor or the dispenser chute flap likely needs service.
How much does it cost to fix a Whirlpool ice maker in San Diego?
Spark charges an $80 service call that’s credited toward the repair if you proceed. Common fixes range from a water inlet valve to a complete ice maker assembly, and every repair is backed by our 90-day warranty on parts and labor.
My Kenmore ice maker has the same problem — does this guide apply?
In most cases, yes. Kenmore refrigerators with model numbers starting in 106 were built by Whirlpool, so the ice maker designs, reset procedures, and failure points here apply directly. We service Kenmore across San Diego County, with same-day service available when you call before noon at (619) 330-5105.
