E-code board from 2012 or a current C-code Bespoke: same meter, same test, same written number. Samsung washer repair across San Diego County from Spring Valley: licensed and insured, $90 service call credited to the repair, a same-day slot when you call before noon, 90-day warranty on parts and labor. Pumps, locks, valves and hall sensors for WF, FlexWash and WA washers travel in the van bins.
(619) 330-5105
Samsung WF and WV front-loads turn the drum with a brushless digital inverter motor. A stator bolts to the tub, a magnet rotor rides the shaft, and a hall sensor (DC31-00098A, the rotor position sensor) reports drum speed to the main control board (PCB). No belt, no brushes. WA top-loads run the same inverter motor through a clutch and shift actuator under the tub. A Samsung that quits mid-cycle usually shows one of four codes. 5C: the pump or debris filter cannot clear the tub. dC: the door or lid lock did not confirm. 4C: the inlet valve never filled it. 3C: the motor missed its target speed. We read the code, then meter the suspect part before quoting.
A 2012 WF showing 5E and a 2026 Bespoke AI showing 5C get the same test from us: the board generation changed the letters, not the pump behind them. Spark Appliance Repair runs Samsung washer repair across San Diego County from 2637 Summitview Ln in Spring Valley. WF, FlexWash and WA top-loads alike, with the parts behind most calls already in the van. Reach us at (619) 330-5105 or book online.
Swapping parts until a code clears gets expensive. A Spark visit runs differently.
A dead WV FlexWash takes the family load and the small-load washer out together; a 5C with a full drum is laundry souring. Call before noon and the Samsung-stocked van takes a same-day slot, seven days a week.
#C 62399 is the number under which the California Bureau of Household Goods and Services lists Spark; the company is insured, and its technicians work the Samsung inverter drive, FlexWash dual tub and AddWash door.
The $90 is more than half of our lowest table row ($170) and under a fifth of the highest ($520). Paid once at the door, subtracted once from the quote; decline, and that is the bill. Approve, and part plus labor are warranted for 90 days; a repeat inside the window is fixed free, return trip included.
Pumps DC31-00054A and DC97-15974C, locks DC34-00024B and DC34-00025E, rod kit DC97-16350U and pressure sensor DC32-00008A ride in the van. Two are cross-overs: the DC31-00054A pump replaces the DC31-00016A, the DC34-00025E lid lock the DC34-00025A, so E-code era machines are usually van-stock repairs too.
Do not restart the cycle; each retry pushes more water at a pump that cannot move it. Behind the small cover at the bottom front, beside the debris filter, is an emergency drain hose: unplug, pull it over a shallow pan, open the cap. Water on the floor? Shut both angle stops.
Same diagnosis for a 2012 WF showing 5E or dE and a new Bespoke showing 5C or dC. The pump and lock cross-overs above are why the older ones are usually a one-visit job.
The debris filter on a WF or WV sits behind the small cover at the bottom front, and a packed one is the usual 5C. Drum emptied through the emergency hose, filter cleared, then the DC31-00054A pump read under a drain command: powered but silent, or humming dry, means a new pump from the van.
On AddWash models dC usually means the mid-door was opened without pressing Start/Pause or is not latched: close it, hold Start/Pause, the cycle resumes. Main door shut and dC surviving a power cycle means the DC34-00024B lock is not reporting to the board; it is replaced after a circuit test. WA top-loads: the DC34-00025E lid lock.
WF front-loads heat wash water with a tub heater (DC47-00006A). A heater code means the element, the DC32-00010C thermistor (temperature sensor), the level sensor or the PCB relay; the cheap two are tested first.
The upper tub on a WV FlexWash has its own fill and drain path, so a dead upper compartment is usually a valve or secondary board (sub PCB), not the main drum. On Bespoke AI washers a frozen Smart Dial points to the display sub PCB or its ribbon cable.
Both supply valves open? Then inlet screens, a solenoid coil reading open, or a DC32-00008A pressure sensor that cannot tell the board the tub is empty. Screens and coil readings come before any valve.
First move: a Calibration run from the panel turns the empty drum both ways for about three minutes with no load. A 3C there is a motor-circuit fault with laundry ruled out. Then the rotor comes off: a stator pair off the Samsung service sheet means a stator; a silent DC31-00098A hall sensor, a sensor from the van.
The base-pan sensor trips on real leaks, on oversudsing and on a drain hose that siphons water back. Pan dried, fill and spin run with the lower panel off; a sensor that trips again inside one cycle has a real source: split hose, cracked dispenser housing, weeping pump seal or torn door boot.
VRT Plus on WF front-loads is a balance ring with steel balls in a fluid raceway; it evens out an uneven load but cannot hold a drum on worn shocks or a tired rear bearing. On WA top-loads the four DC97-16350U suspension rods stretch until the basket meets the cabinet. Rods as a set, shocks as a pair.
Older Samsung boards show E-suffix codes, newer ones C-suffix; 5E and 5C are the same drain fault. Meaning on the left, our test on the right.
| Code | What Samsung means by it | What Spark tests |
|---|---|---|
| 4C / 4E / nF | Water supply — the tub did not fill in time. | Supply valves, inlet screens, solenoid coils, DC32-00008A pressure sensor and air hose. |
| 5C / 5E / SC | Drain — water was not pumped out in time. | Debris filter, impeller, hose height, DC31-00054A pump winding and voltage at the pump. |
| dC / dE / dL | Door or lid not detected as closed and locked. | AddWash mid-door latch, DC34-00024B door lock, DC34-00025E lid lock, harness to the PCB. |
| 3C / 3E | Motor restriction — no speed feedback. | Calibration run, DC31-00098A hall sensor, stator pairs against the service sheet, bearing drag. |
| UC | Supply voltage outside the safe range. | Outlet voltage under load, extension cords, shared circuits. |
| OC / OE | Overflow — water level above the limit. | Inlet valve stuck open, pressure sensor reading, blocked air hose. |
| LC / LE / 1LC | Leak detected by the base sensor. | Drain-hose siphoning, suds, hoses and clamps, dispenser housing, pump seal, door boot. |
| Sud / 5d | Excess suds — the cycle pauses to let foam settle. | Detergent type and dose (HE only); repeat Sud with HE detergent points at the pressure sensor. |
| HC / Hr / HE | Heater fault or overheat. | DC47-00006A heater continuity (OL = open), DC32-00010C thermistor, water level, PCB relay. |
| tC / tE | Thermistor out of range. | DC32-00010C thermistor resistance and connector, heater harness. |
| PE / 1E | Water level (pressure) sensor fault. | Sensor output, pinched or waterlogged air hose, board connector. |
Samsung went from E-suffix to C-suffix codes; our order did not change. Door first, drain second, fill third, motor fourth — the order Samsung faults show up in San Diego laundry rooms.
On an AddWash we check the mid-door latch and clear a stale dC by holding Start/Pause; on any WF the lock circuit is read at the DC34-00024B connector. Never reports closed? Replaced; on a WA, the DC34-00025E lid lock.
Cover off, drum emptied through the emergency hose, filter out, impeller turned by hand. Then a drain command with the meter on the pump leads: open or shorted winding, or power with no pumping, means a DC31-00054A or DC97-15974C from the van.
Supply valves open, inlet screens clear, each solenoid coil read for an open winding. A slow fill, or an overfill the board cannot see, points at the DC32-00008A pressure sensor; an air hose holding water is drained and the sensor re-read before any valve is condemned.
Calibration run first — our no-load spin test. If 3C returns there, the three stator leads are read in pairs against the Samsung service sheet; one pair open or drifting means a stator. The DC31-00098A hall sensor is tested at its connector: no output means sensor, not motor.
WF front-loads heat their own water for Sanitize. DC47-00006A heater tested for continuity (OL on the meter means open), DC32-00010C thermistor read against water temperature. Both fine with the code still showing? Then the level sensor and the PCB relay.
Drum rocked by hand: vertical slop with a clunk on a WF means bearings; a WA basket swaying on its DC97-16350U rods means suspension. Base pan dried, fill and spin run with the lower panel off; where the first drop lands tells us boot, hose or pump seal.
Samsung washer repair in San Diego, parts and labor together; the $90 you paid at the door is credited once you approve the written quote. Most jobs close between $170 and $520; a tub teardown runs to $640.
| Door Lock DC34-00024B or Lid Lock DC34-00025E (dC) | $180 – $340 |
| Debris Filter Service + Drain Pump DC31-00054A (5C) | $180 – $320 |
| Tub Heater DC47-00006A + Thermistor DC32-00010C (HC / tC) | $190 – $340 |
| Inlet Valve + Pressure Sensor DC32-00008A (4C / 1E) | $170 – $300 |
| Door Boot Gasket (LC leak) or Front-Load Shock Pair (vibration) | $210 – $390 |
| WA Suspension Rod Kit DC97-16350U, Fitted and Re-Leveled | $200 – $400 |
| Digital Inverter Stator or Rotor (3C) | $250 – $480 |
| FlexWash Sub PCB or Main PCB | $290 – $520 |
The inverter motor and most sensors are shared across the range; the cabinet layout and trouble spots are not. (Other Samsung appliances: Samsung appliance repair.)

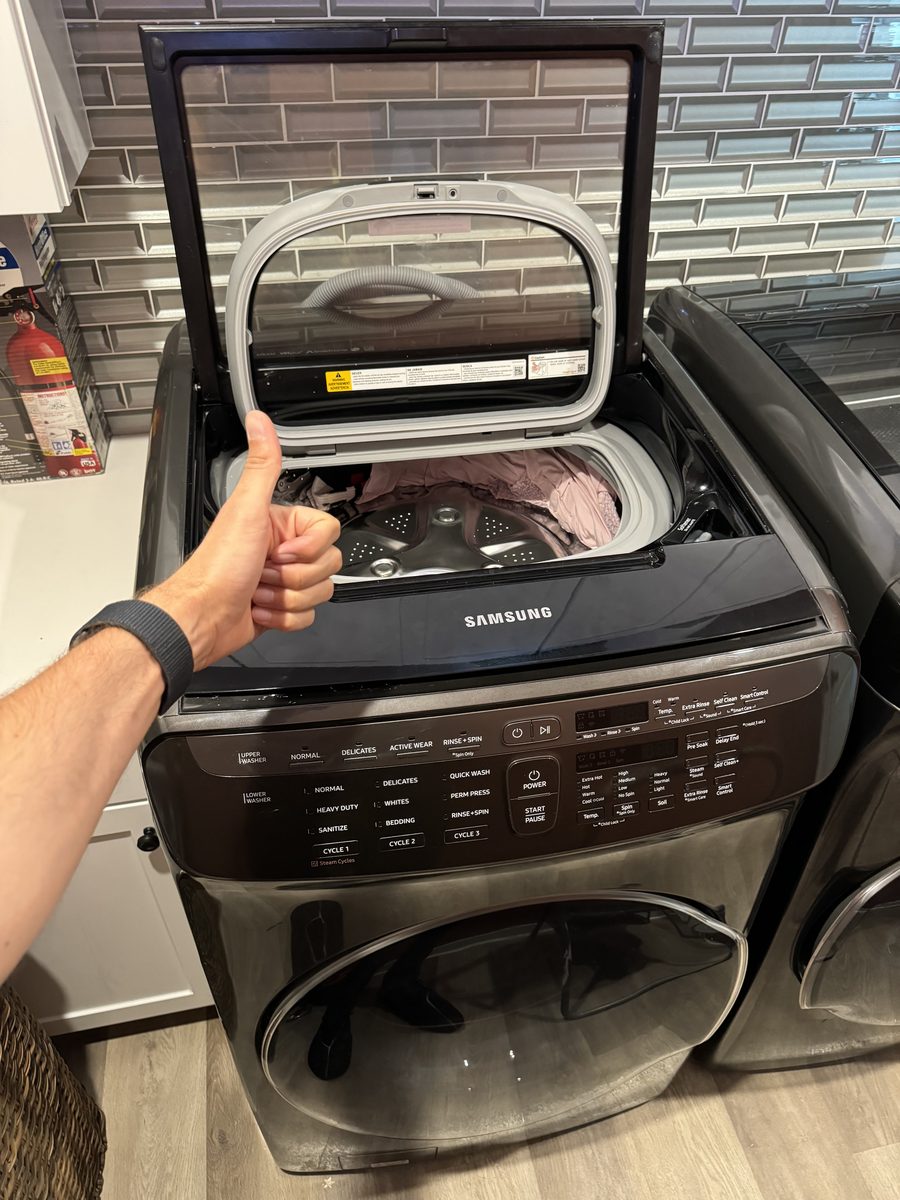

WV60M9900AV and WV60A9900AV pair a 5.0 cu. ft. front-load drum with a 1.0 cu. ft. top-load compartment, each with its own controls. Typical jobs: upper-compartment fill valve and drain, sub PCB behind the top panel, main drum pump and lock, worn shocks under a heavier chassis.
WA50R5400AV and the WA family with VRT Plus and the Active WaterJet faucet. Typical jobs: DC97-16350U suspension rods, DC34-00025E lid lock, pump and inlet valve, clutch, shift actuator and inverter motor under the tub.
WF45T6000AW, WF45K6500AV AddWash and the WF53BB8700 Bespoke AI with Smart Dial. Typical jobs: 5C drain pump, dC door lock, AddWash mid-door seal leaks, heater and thermistor codes, hall sensor and stator, rear bearings, Bespoke display sub PCB.
Model not listed? The tag sits inside the door rim or under the lid; read it to dispatch.
Matching Samsung dryer with no heat? See Samsung dryer not heating or add dryer repair to the same visit.
Four questions our dispatcher asks on a Samsung washer repair call, and why each one matters.
The model tells us WF, WV or WA and which lock, pump and sensor revision to load. The code tells the technician which panel comes off first.
A full drum gets the emergency-hose instructions over the phone. Water on the floor gets “shut both angle stops” and moves the call up the list.
Still morning? Yes: reach us before noon and the van comes today. After noon, expect tomorrow’s first slot rather than tonight; evenings and weekends when you ask. Two-hour arrival window. Book online, or call (619) 330-5105.
That one comes from the technician, after the meter readings, on one written quote. A stocked part goes in on the spot; a stator, board, heater or bearing kit takes 1–2 business days. The 90-day parts and labor warranty starts that day.
Spring Valley is on the South Bay side of the county: Chula Vista, National City and Bonita are the shortest legs of the route; North County is the far end.
Morning calls from Escondido, Poway and Carlsbad usually ride that day’s North County run; afternoon calls from up there are generally scheduled for the next morning. (619) 330-5105 either way.
Lowest row on our Samsung washer repair table: an inlet valve and pressure sensor from $170. Highest: a FlexWash or main PCB to $520. A meter reading, not a guess, says which is yours. Licensed and insured, seven days a week — call (619) 330-5105 this morning for a same-day slot, or book online.
Cheapest job we price: a DC31-00098A hall sensor on its own, $170 to $250 parts and labor. Most expensive: a rear-bearing teardown, $380 to $640. Between them: locks, pumps and valves $170 to $340, heater $190 to $340, stator $250 to $480, boards $290 to $520. The $90 service call is credited to whichever line yours is.
On an AddWash model, check the small mid-door first: dC appears when it was opened without pressing Start/Pause or is not latched. Close it, hold Start/Pause. If the main door is shut and dC survives a power cycle, the DC34-00024B lock switch is not confirming the latch; we test the circuit and replace a lock that never reports closed.
Same fault, different board generation: newer Samsung boards show C-suffix codes, older boards E-suffix. 5E and 5C both mean the tub was not pumped out in time; dE and dC both mean the lock did not confirm. Same test, and most E-code era parts cross over to current numbers.
5C is the real fault: the pump never emptied the drum, and Samsung keeps the door locked while water stands in it to prevent a flood. Press Start/Pause or open an AddWash door at that point and the board logs dC on top. Empty the drum through the emergency hose and fix the drain fault; the dC goes with it. We do not replace a lock for a side effect of standing water.
Not necessarily. The Smart Dial talks to the main board through a ribbon cable and a connector, and both are tested before any panel is quoted; a dial that wakes up when the connector is reseated was never a display fault. Only a display sub PCB that fails the test gets the panel ordered to your model tag.
Yes. Samsung washer gasket replacement is finished on the first visit when we carry the boot for your model; otherwise the genuine part is ordered to the tag. Fill and spin come first, because a split hose leaves water in the same place as a torn boot. The new boot carries the 90-day parts and labor warranty.
It tells you the code: Smart Care puts a check code on the display, and the Samsung Smart Washer app reads it through your phone camera or by manual entry. Read that code to dispatch. What the app cannot do is meter the pump winding, the lock circuit or the stator pairs — the reading that decides between a $170 sensor and a $480 stator.
One visit, different parts list. The 1.0 cu. ft. upper washer on a WV60M9900AV or WV60A9900AV has its own controls, fill valve and drain path, so a dead upper compartment is usually that valve or the secondary board under the top panel; the 5.0 cu. ft. drum below is not opened for it.
Samsung washer error codes explained:
Samsung Washer SC (5C) Code ›What the drain code means on top-load, front-load and FlexWash models, the five-minute checks, and what the pump or sensor fix costs.Washing Machine Repair Cost by Part ›Pump, valve, belt, door lock, bearings, board and motor prices, brand adjustments, and the 50 percent rule with numbers.
